Mangal Industries manufactures, supplies, and installs a wide range of metal doors known for their low maintenance, compact design, and durability. The company specializes in providing high-specification products that meet international industry standards and certifications.

The hinged doors are high-quality and cost-effective, featuring efficient, innovative designs. The Metal doors are typically made of sheet steel (Galvano Iron GPSP or Stainless Steel 304 Grade), with a hollow core reinforced by light metal channels. Depending on customer requirements, the core can be filled with paper honeycomb, polyurethane foam, or rock wool.

Industries We Serve

High-rise Residential High-rise Residential
Commercial Buildings Commercial Buildings
Pharma, Biotech & Chemicals Pharma, Biotech & Chemicals
Electronics Electronics
Hospitals & Healthcare Hospitals & Healthcare
Manufacturing Manufacturing
Metro Metro
Industrial Industrial
Automotive Automotive
Healthcare Healthcare
Manufacturing Manufacturing
Metro Metro
Residential Residential

Products and Solutions

Scientific Doors
Residential Doors
Sliding Doors
Dutch Doors
Fire Rated Doors
Secure Doors
Shaft / Hatch Doors
Foldable Doors
General Doors
Acoustic Doors
Louvered Door
Double Egress Doors
Stainless Steel Doors
Rail and Stile Doors
Transom Doors
Single Glazed Fixed Glass Windows
Lead Lined Doors
Swing Doors
Hollow Metal Door Frames
Double Glazed Fixed Glass Windows

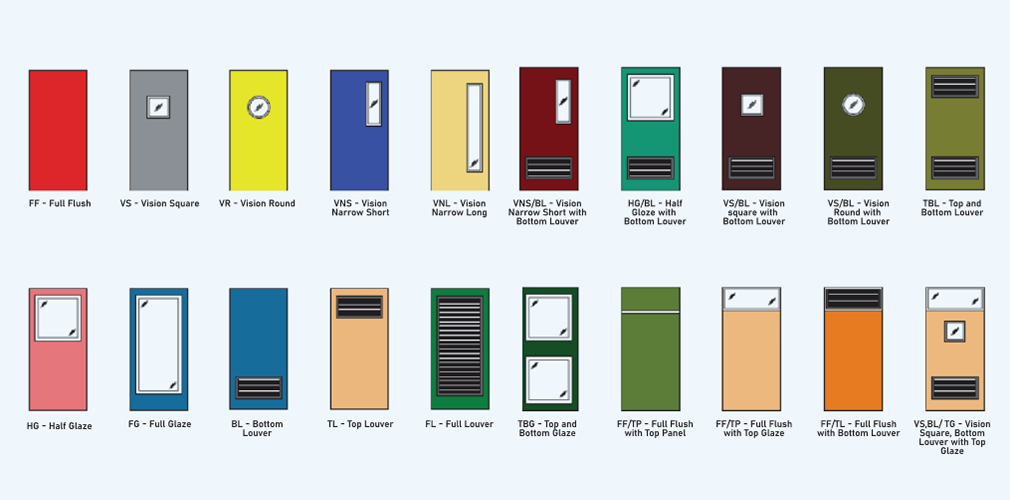

Our Door Designs

Our Door Designs

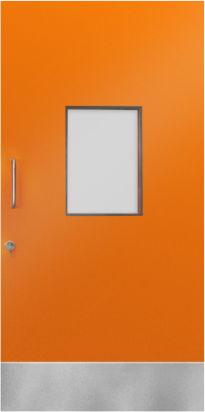

Scientific Door

Scientific doors are designed to meet strict USFDA, WHO, and CGMP standards for clean and hygienic applications. They are ideal for industries such as pharmaceuticals, biotechnology, food and beverages, electronics, and hospitals, which demand high hygiene standards. Available in galvanized and stainless steel, these fully flush-type doors come with a variety of stainless-steel ironmongery, both domestic and imported. They can be customized with special features, vision panels, and a wide range of color finishes to suit specific project needs.

Scientific Door

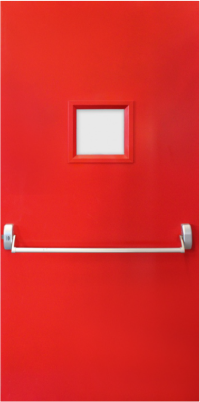

Fire Rated Door

Fire-rated doors are crucial in buildings, factories, and commercial spaces for containing fires and saving lives and property. Studies show that smoke asphyxiation causes more deaths than the fire itself. Steel fire-rated doors act as barriers against fire and smoke, helping to restrict the spread of fires caused by arson, short circuits, gas leaks, or negligence, thereby saving lives.

Fire Rated Door

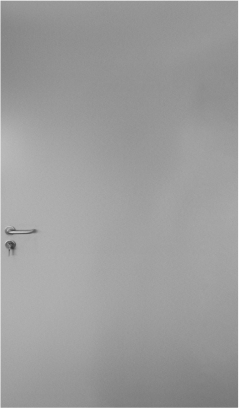

General Door

General steel door sets offer superior protection against vandalism, fire, and burglary, and require minimal maintenance. More robust than timber, PVC, or aluminium, they are favoured by residential and commercial enterprises for their design options and adherence to safety and security standards. These doors are durable, maintenance and eco-friendly.

General Door

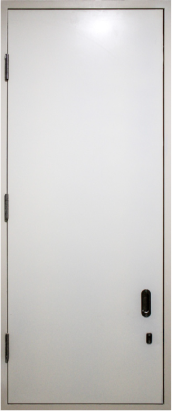

Duct / Shaft /Access Door

Access doors, also known as access panels or shaft doors, provide secure entry in restricted areas. Available in various colours and with optional vision panels or louvers, they suit diverse customer needs. They are used in drywall, plaster, plumbing, electrical systems, valve boxes, floor hatches, security applications, and larger installations like roof hatches and walk-through doors. Duct access doors offer economical access to duct components, featuring insulated panels and gaskets for a tight seal. These doors come in hinged or double-cam constructions.

Duct / Shaft /Access Door

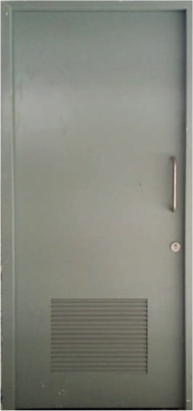

Louvered Door

Louvered doors are ideal for interiors requiring cross-ventilation. Uniquely designed to offer visual privacy and ventilation, they provide security for high-risk areas. Available in partial or fully louvered, single or double leaf configurations. These doors are used in maintenance rooms, utilities, power generator stations, electrical substations, swimming pools, office cabins, closets, plant rooms, and other commercial areas.

Louvered Door

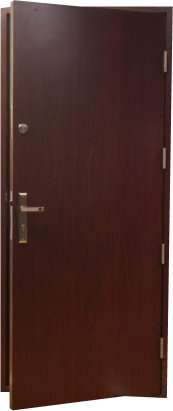

Wood Finish Door

Metal doors offer significant advantages over traditional wooden or plastic doors. They are stronger, more secure, and available in a wide range of customizable designs, colors, and finishes to enhance aesthetic appeal. While wooden doors may initially appear more attractive and economical, they are prone to warping, bubbling, peeling, twisting, and bowing due to weather conditions, leading to frequent replacements and higher long-term costs. Considering these factors, metal doors are a prudent investment for both residential and commercial buildings, fitting seamlessly into any architectural theme.

Wood Finish Door

Metal Doors Specifications and Applications

Specification Clean Room Door Commercial Door Fire Door Cold Room Door Acoustic Door Sliding Door General Purpose
Material Galvanized Steel Galvanized Steel Galvanized Steel Galvanized Steel Galvanized Steel Galvanized Steel Galvanized Steel
Stainless Steel 304 Grade Stainless Steel 304 Grade Stainless Steel 304 Grade Stainless Steel 304 Grade Stainless Steel 304 Grade Stainless Steel 304 Grade Stainless Steel 304 Grade
Sheet thickness 0.8 MM Thk for Shutter 0.8 MM Thk for Shutter 0.8 ,1.2 to 1.6MM Thk for Shutter 0.8 to 1.0MM Thk for Shutter 0.8 to 1.0MM Thk for Shutter 0.8 to 1.0MM Thk for Shutter 0.8 to 1.0MM Thk for Shutter
1.2MM Thk for Frame 1.0 -1.2MM Thk for Frame 1.2,1.6 to 2.0MM Thk for Frame 1.2MM Thk for Frame 1.2MM Thk for Frame 1.2MM Thk for Frame 1.2MM Thk for Frame
Shutter Thickness 46mm 46mm 46 & 50mm 46 & 50mm 46 & 50mm 46mm 46mm
Infill Material Honey Comb / PUF Honey Comb Rockwool/ Mineral Wool PUF Rubber Sheet + GlassWool With Neoprene Seals Honey Comb Honey Comb
Applications Pharma, Food, Offices, Hospitals Institution, Apartments, Malls, Offices Pharma, Shopping Malls, Apartments Industries Clean Room, Cold Room, Food Processing Auditorium, Recording Studios Offices, Shopping Malls All
Specification Clean Room Door Clean Room Door Commercial Door Fire Door Cold Room Door Acoustic Door Sliding Door General Purpose
Material Width (mm) 450 -1200 450 -1200 450 -1200 450 -1200 450 -1200 450 -1200 450 -1200
Width (mm) 750 -3000 750 -3000 750 -3000 750 -3000 750 -3000 750 -3000 750 -3000
Width (mm) 800 -2400 800 -2400 800 -2400 800 -2400 800 -2400 800 -2400 800 -2400 800 -2400
Height (mm) 750 -3000 750 -3000 750 -3000 750 -3000 750 -3000 750 -3000 750 -3000

Shutter Infill Material (Cores)

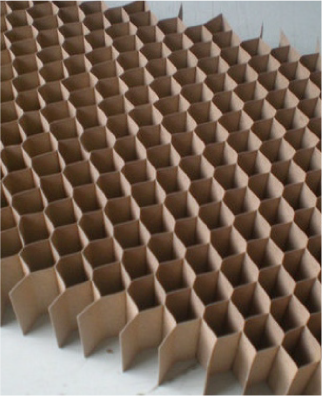

Honeycomb

  • Perfect hexagonal-shaped core made from 100% recycled paper, strong and lightweight.
  • Commonly used as core infill for interior doors, partitions, and various components.
  • Provides high-pressure strength.
  • Suitable as a core material between flat and molded facings.
  • Easily adaptable to any shape.
  • Exceptional deformation properties.
Honeycomb

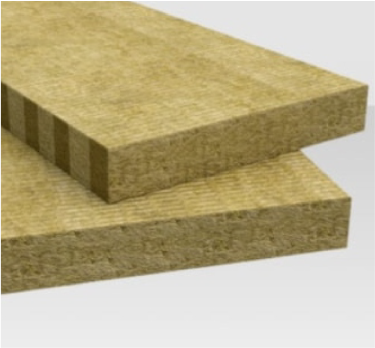

Rockwool with Stiffer

  • High-density rock wool board insulation is made from molten basalt spun into fine fibers and bonded with a heat-resistant binder.
  • The rock wool infill board meets ASTM C-612 technical standards.
  • Optimized density, fiber direction, and excellent fit provide ideal thermal and acoustic insulation for steel doors.
  • Rock wool infill is used in steel-stiffened doors.
Rockwool with Stiffer

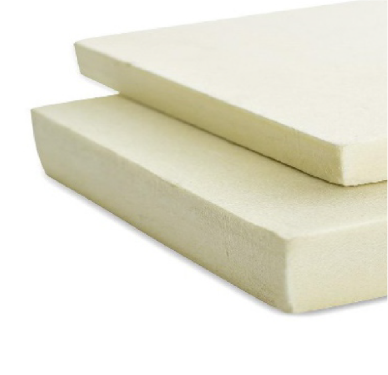

Polyurethane Core

  • Insulated foam is injected into the core, expanding to fill all available space within the hollow metal door.
  • Polyurethane offers the best insulation value but cannot be fire-rated.
  • These insulated doors are typically used for clean room applications.
  • Rock wool infill is used in steel-stiffened doors.
 Polyurethane Core

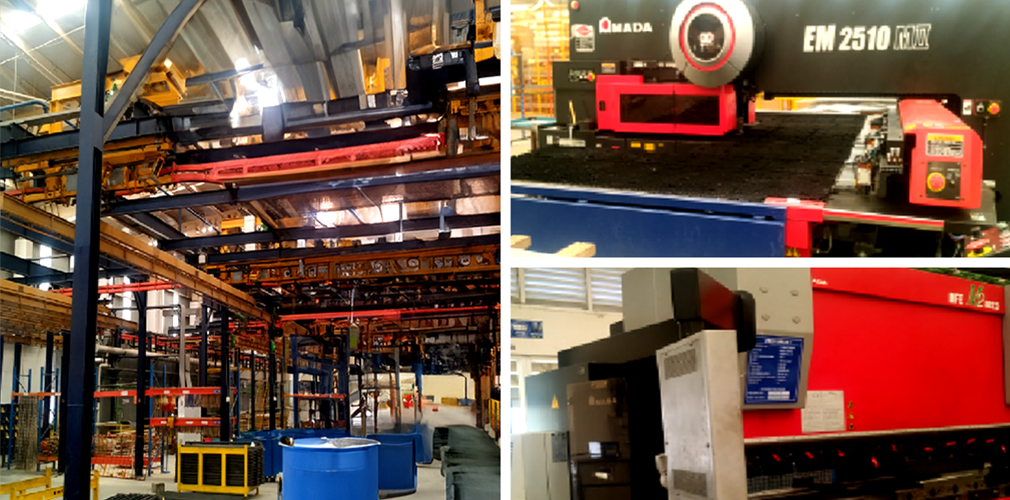

World-class Manufacturing

The state-of-the-art manufacturing facility houses the latest machinery for meeting the customized requirements of diversified customers.

Quality Assurance

Mangal's comprehensive quality systems, from raw materials to final products, ensure compliance with international standards. Continuous improvements and upgrades in our inspection and testing facilities guarantee product quality, durability, and reliability.

Product Quality Tests

Product Quality Tests

Salt Spray Test: Metal undergoes accelerated weathering and salt spray tests, examining the paint film for corrosion.

Scratch Hardness

Scratch Hardness Test: Determining material hardness against scratches and abrasion.

Crosshatch Test

Crosshatch Test: Assessing the adhesion quality of powder to the base material.

Impact Test

Impact Test: Evaluating material resistance to sudden impacts.

Conical Mandrel Test

Conical Mandrel Test: Evaluating the adhesion quality of zinc or paint to the base material.

UV Test

UV Test: Assessing color fastness by exposing the metal to UV rays.
